MFA ColGrip

For Locating Masonry to Steel Columns

About MFA Col Grips – Seamless Column-to-Wall Connection

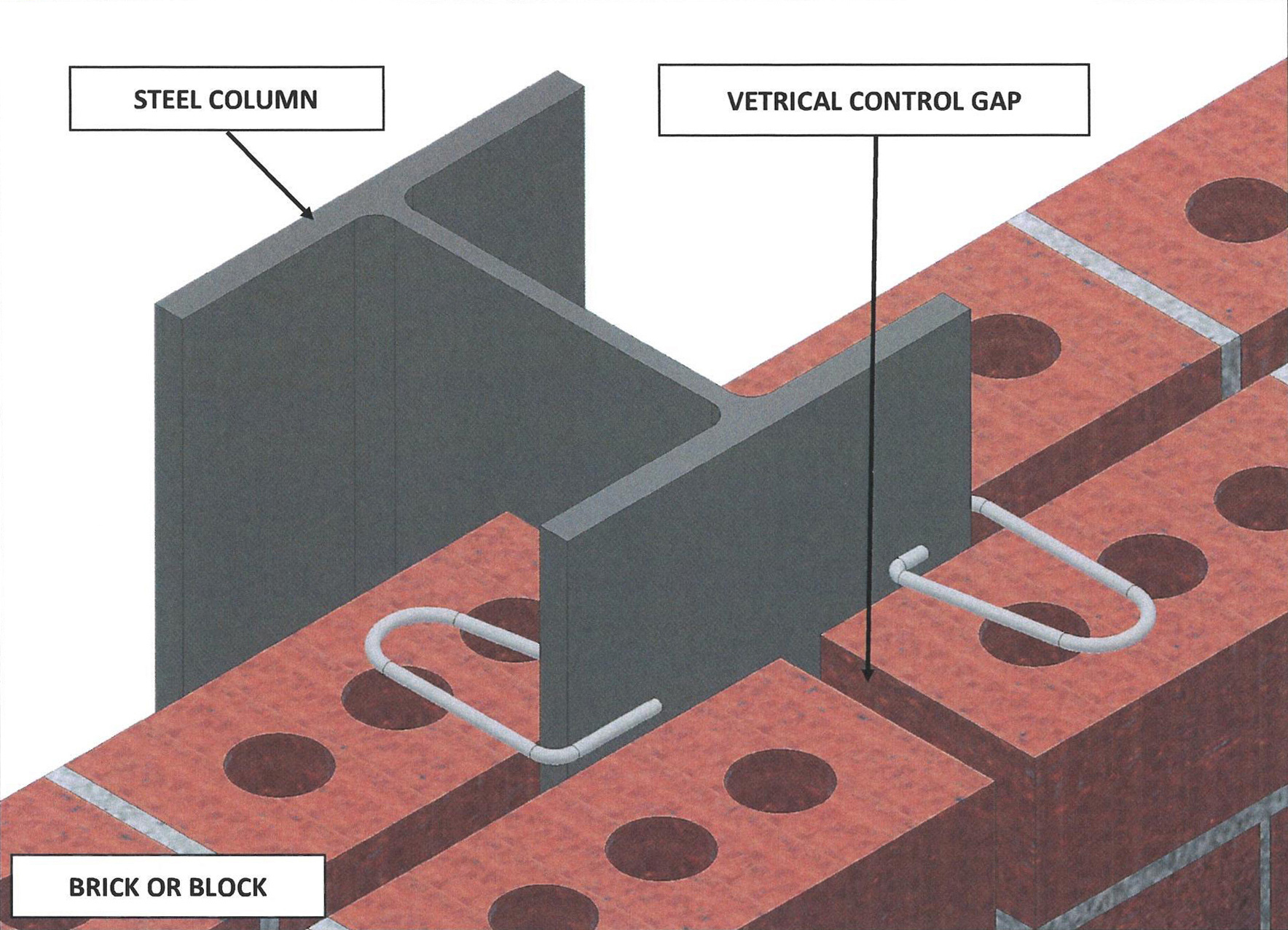

The MFA Col Grips are precision-engineered to connect universal steel columns to adjacent brick or block walls without the need for additional fixings. Designed with built-in flexibility, these ties accommodate both vertical and horizontal movement, making them ideal for applications requiring expansion and contraction capabilities.

Construction
Construction

Features and Benefits


  • No additional fixings required – simplifies installation
  • Accommodates both vertical and horizontal building movement
  • Available in 3 different lengths to suit varying cavity widths
  • Provides secure, lasting connection between steel columns and masonry
  • Suitable for new builds or retrofitting to existing structures
  • Made from galvanised or stainless steel for long-term durability

Key Specifications


  • Application: Connects universal steel columns to brick/blockwork

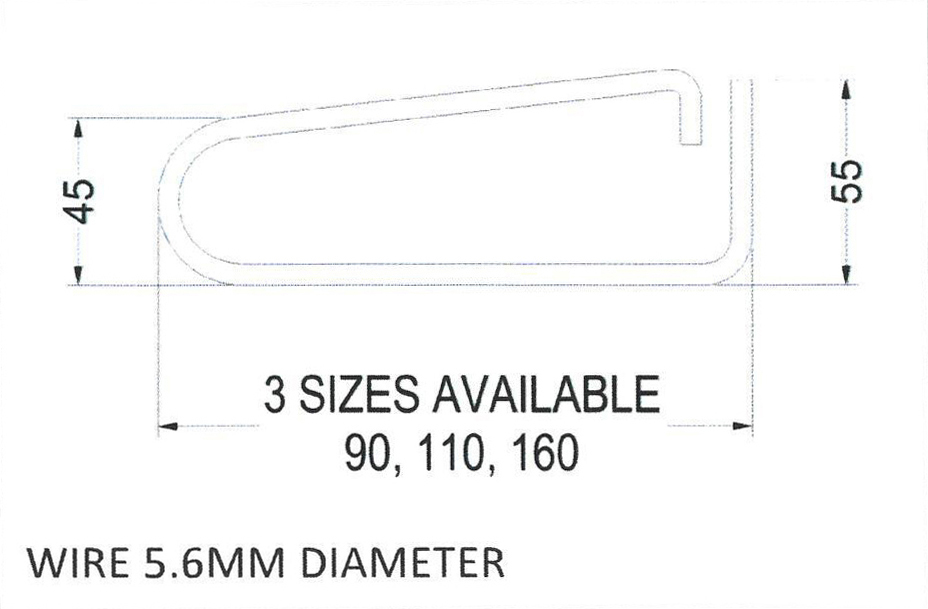

  • Lengths: Available in three sizes to suit different cavity widths
  • Expansion Capability: Allows for vertical and horizontal movement
  • Finishes: Galvanised Z600 or Grade 316 Stainless Steel
  • Installation: Mechanical friction fit – no fasteners required
