Hesbia

Developed for Strength and Economy, Hesbia concealed lintels provide superior load-bearing support while maintaining a clean, modern aesthetic. Ideal for architectural brickwork, they offer durability and enhanced structural performance.

Hesbia Concealed Lintels – Transforming Brickwork into Load-Bearing Beams

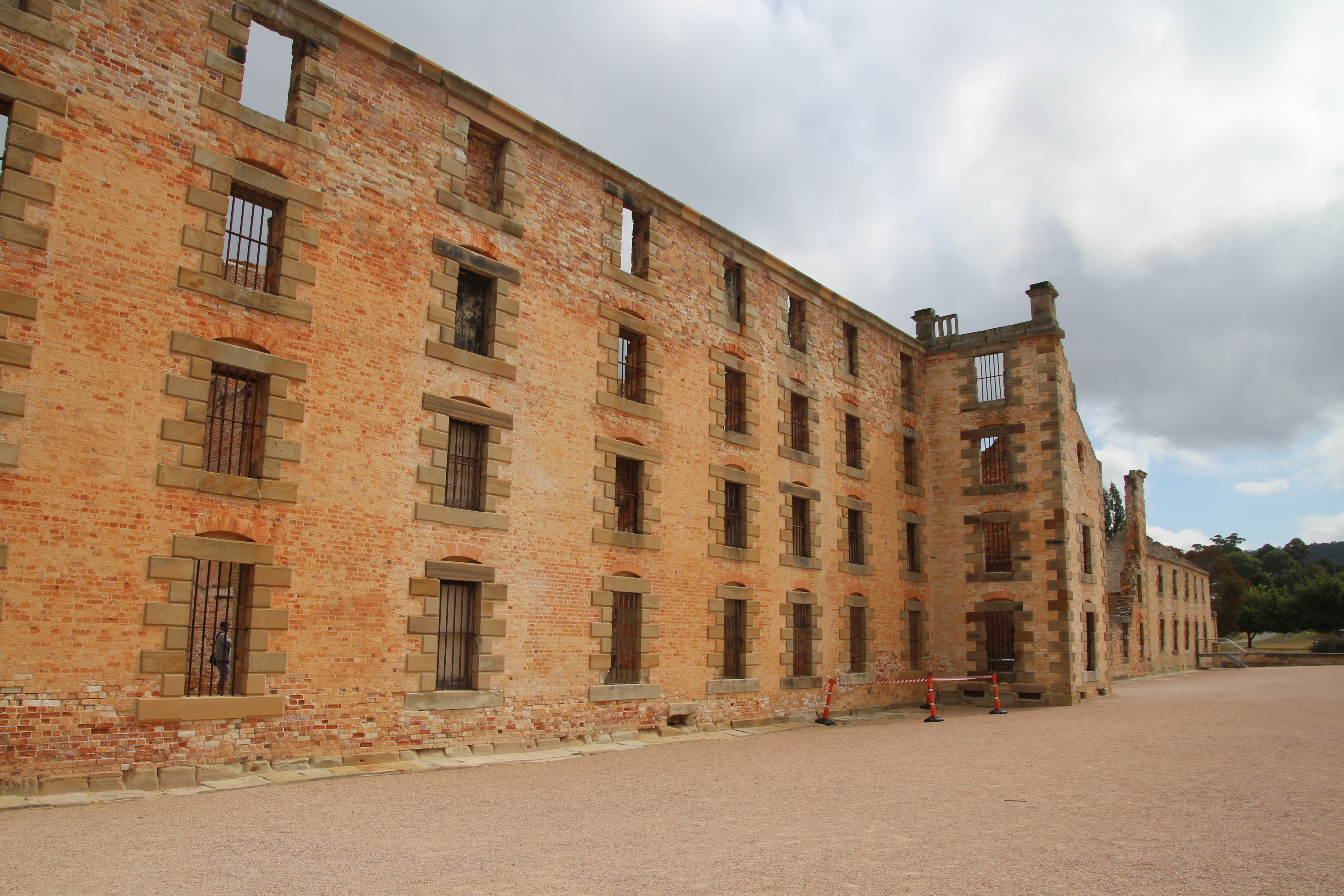

 Hesbia was extensively used in the restoration of the Port Arthur settlement in Tasmania

Hesbia Range Range

Using this product results in a clean finish of brickwork, allowing the beauty of the exposed bricks to shine rather than obscuring them with steel lintels.
The Hesbia system is supplied in stock form in galvanised steel and can also be requested in stainless steel grade 316.

HESBIA

HESBIA

Hesbia Brickwork Reinforcement Systems

The Hesbia system, which stands for "Holds Every Size Brick In Australia," offers an aesthetically pleasing solution for supporting exposed brickwork above doors or windows, typically requiring visible steel lintels.
Brickwork, like concrete, has high compressive strength but low tensile strength. The Hesbia system has been developed to enhance the tensile strength of brickwork conveniently.


Hesbia concealed lintels are constructed by bricklayers and function similarly to reinforced concrete beams, using bricks and mortar instead of concrete. This simple yet sturdy framework allows the lintel or beam to become an integral part of the building. As a result, nothing is visible that requires painting, rendering, or protection.

Hesbia was extensively used in the restoration of the Port Arthur settlement in Tasmania!

Construction
Construction

Strong and Seamless Support for Modern Masonry

Additionally, the Hesbia system is extremely cost-effective and can be easily installed by following the Hesbia installation guide. It is available in stock sizes of 2000mm, 3000mm, and 4000mm bars, as well as Stop Ends places at each end of the bar. This system provides a cost-effective alternative while ensuring a clean finish for exposed brickwork.

The mortar used in a Hesbia lintel must have a composition of no weaker than 1:1:6 (cement: lime: sand). Chemical plasticisers should not be used as substitutes for lime, and it is essential to ensure the correct amount of cement is utilised. Any brick bond pattern can be applied; there is no need to cut bricks to accommodate the steel components. Any size clay brick with a minimum width of 90mm can be used.

However, clay bricks with over 25% perforation, concrete blocks, and calcium-silicate bricks should not be used in a Hesbia lintel without the approval of a qualified engineer.
