MFA-8

Attaching Brick Walls to Vertical Columns

About MFA 8 LD & HD – Column Tie for Expansion-Ready Masonry

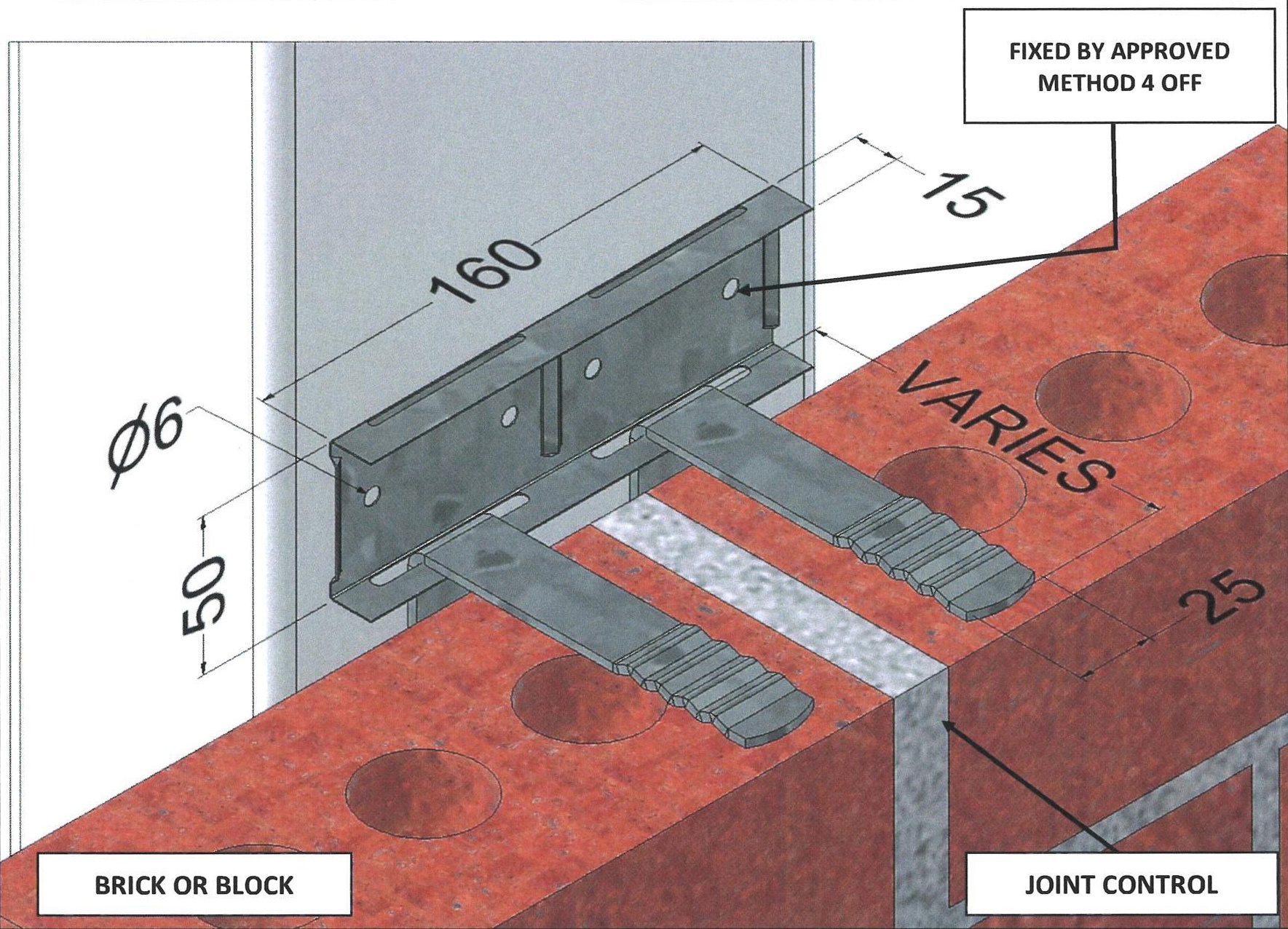

The MFA 8 Light Duty (LD) and Heavy Duty (HD) ties are engineered for fixing masonry walls to vertical steel columns while allowing for necessary expansion movement. Designed with precision bends and high-grade materials, these ties maintain structural integrity while accommodating natural wall movement.

Construction
Construction

Features and Benefits

  • Secure masonry walls to vertical columns across various projects
  • Supports lateral expansion and contraction, ideal for control joint locations

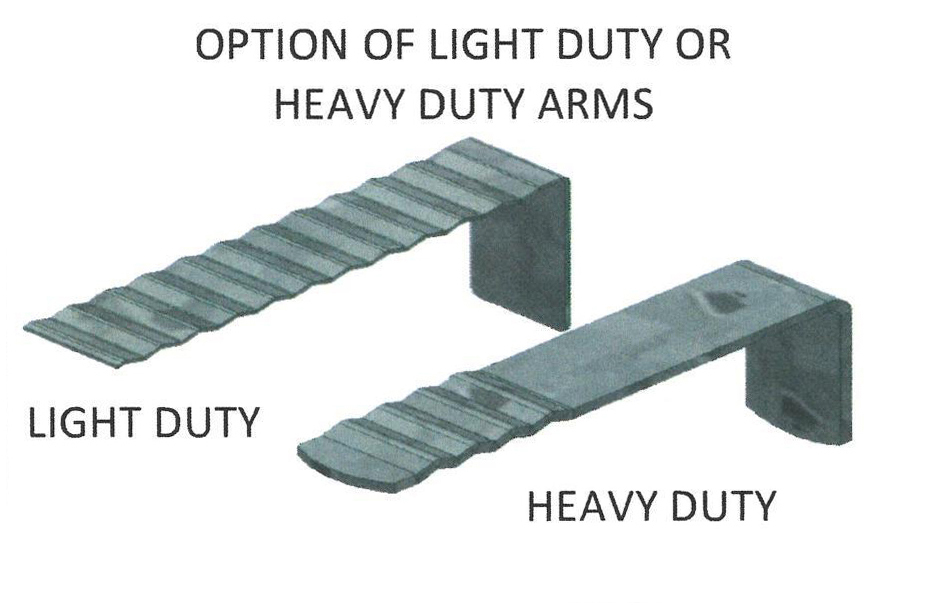

  • Supplied in both Light and Heavy Duty options
  • Reduces stress-related cracking by absorbing movement
  • Pre-punched for simple on-site fixing
  • Durable in galvanised or 316 stainless steel finish

Key Specifications

  • Duty Ratings: Light Duty or Heavy Duty
  • Application: Column to masonry connection with expansion flexibility
  • Material Thickness: LD – 1.2mm; HD – 2.0mm
  • Finishes: Galvanised Z600 or Grade 316 Stainless Steel
  • 6mm fixing holes
  • Fixing Type: Face-fix to column flange
