MFA-6

Attaching Masonry Veneers to Poured Concrete

About MFA 6 LD & HD – Veneer Ties for Concrete or Existing Masonry Walls

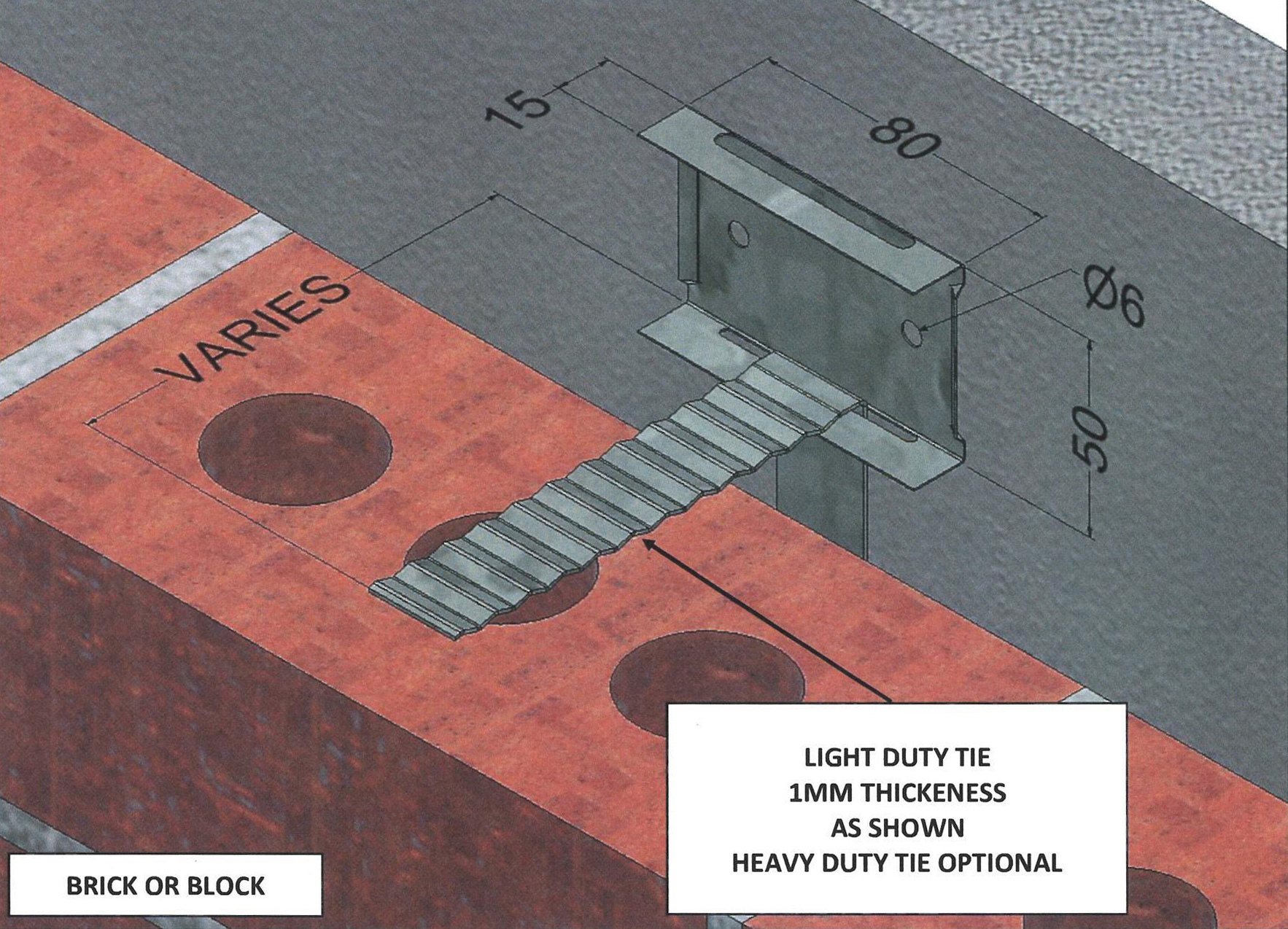

The MFA 6 range includes Light Duty (LD) and Heavy Duty (HD) ties designed to connect masonry veneer to existing masonry or concrete slab walls when constructing cavity walls. With a right-angle form and robust build, they ensure structural alignment and resilience in both residential and commercial settings.

Construction
Construction

Features and Benefits

  • Anchors new masonry veneer to existing walls or concrete slabs

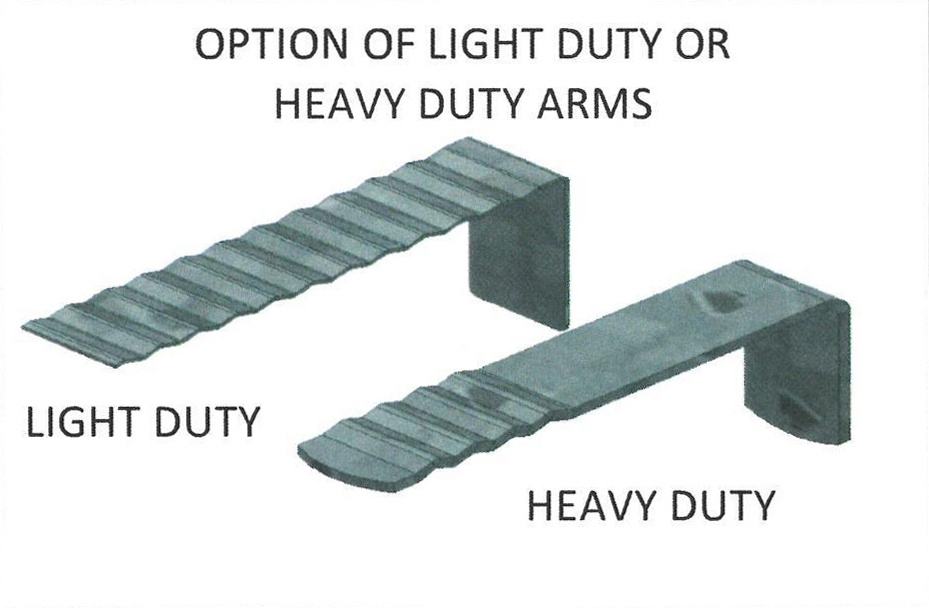

  • Available in Light Duty and Heavy Duty versions for tailored support
  • Ideal for cavity wall construction in retrofits or new builds
  • Quick and efficient face-fix installation
  • Corrosion-resistant in galvanised or 316 stainless steel
  • Engineered to perform under lateral and vertical loads

Key Specifications

  • Duty Ratings: Light Duty or Heavy Duty
  • Mounting: Face-Fix
  • Material Thickness: LD – 1.2mm; HD – 3.0mm
  • Finishes: Galvanised Z600 or Grade 316 Stainless Steel
  • Compliant With: AS/NZS 2699.1
  • 6mm fixing holes
