MFA 1 and MFA 2

Shelf Angles and Load Bearing Brickwork

About MFA 1 and MFA 2

The MFA 1 and MFA 2 anchors from Brunswick Sales are purpose-built for structural reliability in brick and block construction. Designed for shelf angle applications and under-slab load-bearing masonry, these anchors offer dependable reinforcement where it matters most.

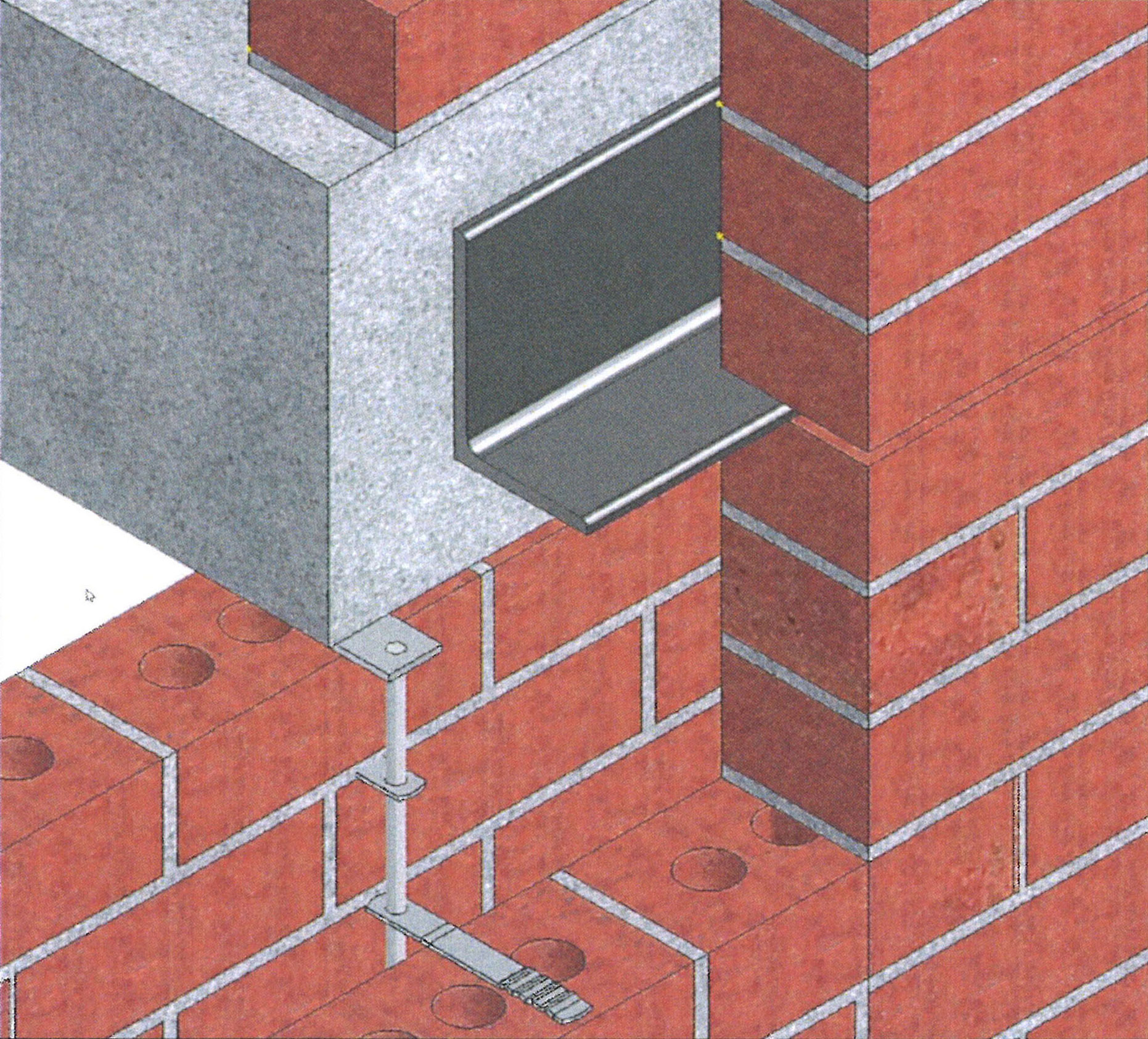

MFA 1 is a purpose-built masonry anchor designed to fix shelf angles to the underside of concrete slabs, offering a secure connection for load transfer in cavity wall construction. The dual tie design enables flexibility to accommodate differential movement while maintaining structural support.

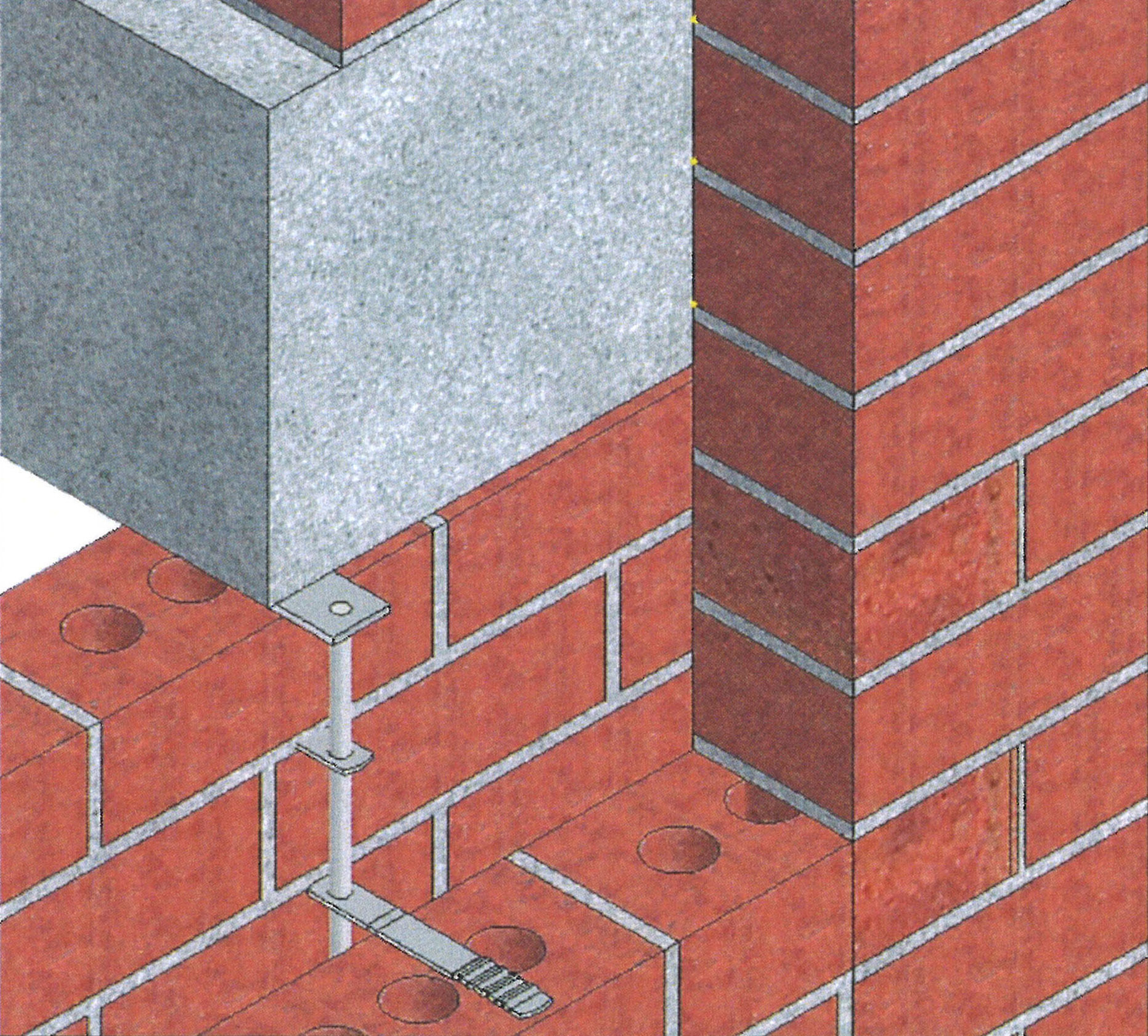

MFA 2 provides a robust solution for securing loadbearing brickwork beneath slab edges or beams. Its reinforced design and material composition ensure long-term performance in structural brick and block applications, especially where consistent vertical loads are present.

Construction
Construction

Features and Benefits

Designed for ease of installation and compatibility with Australian building conditions, these anchors deliver flexibility, strength, and corrosion resistance.



  • Galvanised or 316 Stainless Steel Finish – ensures corrosion resistance in both internal and external environments
  • Sliding Tie Design – accommodates brickwork movement, reducing stress and preventing cracking
  • Standard 500mm Bar Length – suitable for a wide range of applications across residential and commercial builds
  • Robust Top Plate (150 × 40 × 5mm) – provides secure anchorage under slabs or on ledges
  • 12.5mm Pre-Drilled Hole – enables easy and reliable fixing to concrete using standard fasteners
  • Code-Aligned Construction – designed to meet common masonry and anchoring standards in Australia
  • Load-Rated Performance – supports both shelf angle and direct loadbearing masonry construction
  • Simplified Site Installation – no welding or special tooling required, saving time and labour costs


With consistent manufacturing and thoughtful detailing, Brunswick Sales’ MFA range helps simplify your site installs and deliver reliable, code-compliant structural solutions.

Key Specifications


  • Anchor Plate Dimensions: 150mm (L) × 40mm (W) × 5mm (T)
  • Anchor Bar Length: 500mm standard
  • Anchor Bar Diameter: 5.6mm
  • Fixing Hole Diameter: 12.5mm for mechanical fixings
  • Material Options: Galvanised steel or Grade 316 Stainless Steel
