MFA 1-2 Bld Strap and MFA 3-1
Rigid Wall Ties and Expansion Ties
About MFA 1-2 and MFA 3/1

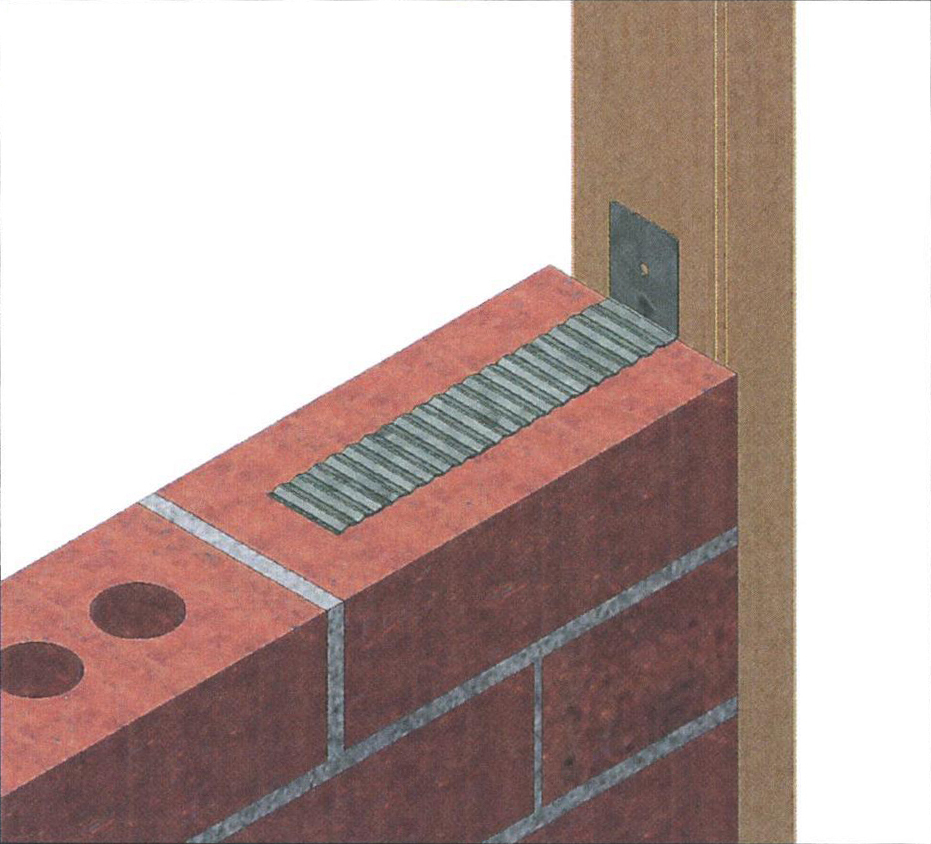

Designed for high-performance brick veneer and cavity wall construction, MFA 1-2 anchors offer targeted solutions for different masonry needs. The MFA 1-2 is a rigid face-fix wall tie ideal for brick veneer installations where foil barriers are used, eliminating the need to puncture the foil and streamlining compliance with energy efficiency requirements.

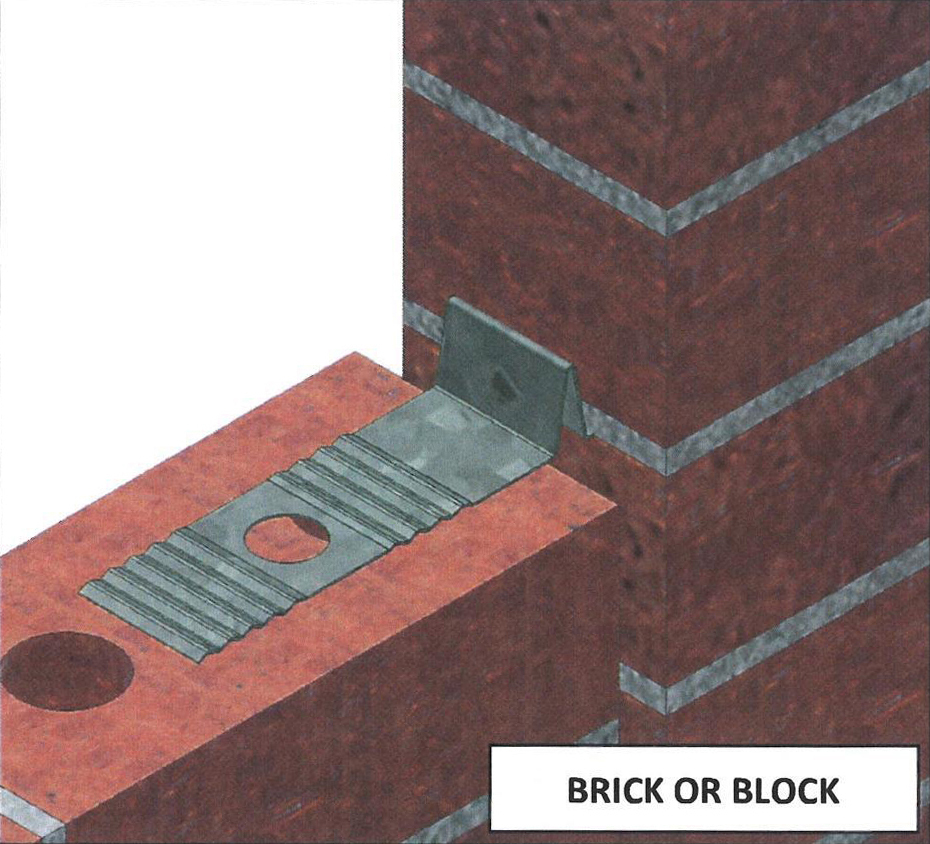

Meanwhile, the MFA 3/1 features a V-shaped profile that accommodates controlled movement across expansion joints in brick or block walls — helping to reduce cracking and maintain structural continuity.
Features and Benefits
Face-Fix Rigid Tie Design – Prevents penetration of reflective foil and simplifies veneer installation (MFA 1-2)-
V-Shaped Expansion Tie – Accommodates movement in masonry walls without compromising strength (MFA 3/1)
-
Certified Safety – MFA 3/1 tested by BDRI (Certificate No. B1807)
-
Multiple Length Options – MFA 1-2 available in 6 sizes for varied wall depths and requirements
-
Quality Finishes – Both products available in Hot Dip Galvanised Steel (Z600) or Grade 316 Stainless Steel
-
Quick & Secure Fixing – Hole placements and form factor support fast and reliable on-site installation
-
Compatible with Brick and Block – Designed for a wide range of construction applications
Together, these ties help streamline wall tie installation, improve build quality, and ensure long-term structural reliability in masonry construction.
Key Specifications
MFA 1-2 – Rigid Wall Ties
-
Type: Medium-Duty Face-Fix Builders Strap
-
Available Lengths: 100mm, 150mm, 200mm, 250mm, 300mm, 350mm
-
Material: Galvanised Steel Z600 or Grade 316 Stainless Steel
-
Thickness: 1.6mm
-
Hole Diameter: 6mm
-
Installation: 5mm fixing, min. 25mm embedment
MFA 3/1 – Expansion Ties
-
Type: V-Shaped Movement Tie for Brick/Block
-
Dimensions: 300mm long; Two 145mm × 50mm wings with 30mm (H) × 10mm (W) center bend
-
Hole Diameter: 6mm
-
Material: Galvanised Steel Z600 or Grade 316 Stainless Steel
-
Thickness: 1.2mm
-
Certification: BDRI Test Certificate No. B1807
