MFA-10
Heavy Duty Alternative
About MFA 10 – Heavy-Duty Column Tie for Rigid Fixing

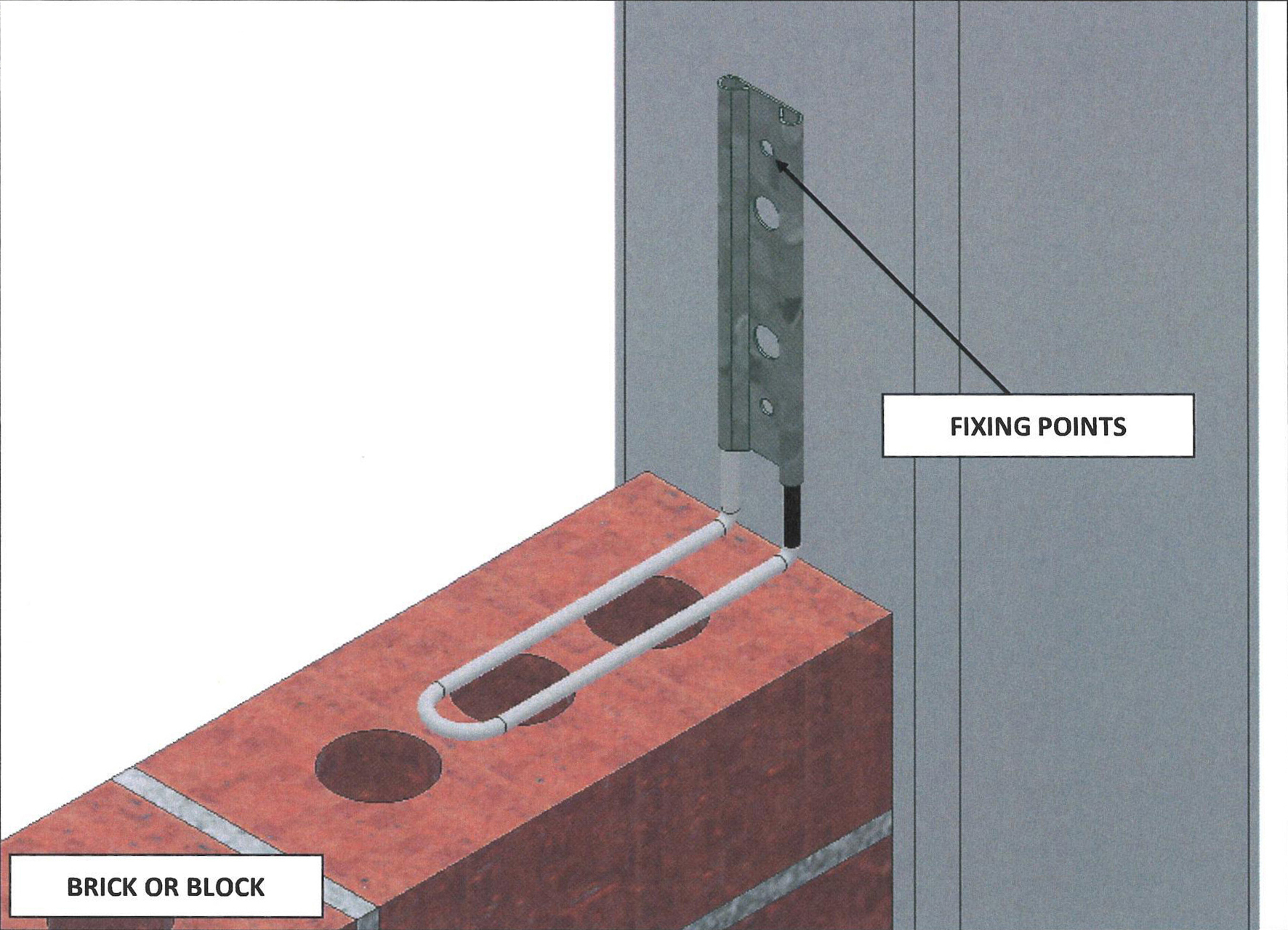

The MFA 10 is a high-strength alternative to traditional expansion ties, designed for situations where no control joint is required. Its rigid right-angle design allows for a secure connection between masonry walls and structural columns, ensuring structural reliability in demanding builds.
Features and Benefits
- Rigid connection between brick/block walls and steel columns
- Eliminates the need for control joints in specific applications
- Ideal for structural designs requiring maximum stability
- Robust design suited to high-load environments
- Easy face-fix installation on-site
- Available in galvanised and stainless steel for varied environments

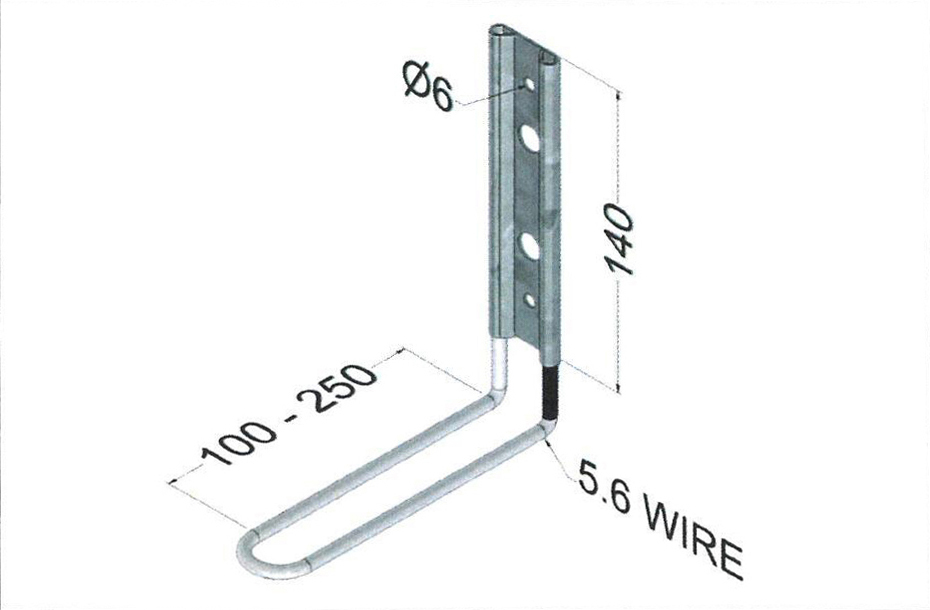

Key Specifications
- Application: Rigid tie for masonry-to-column without movement
- Material Thickness: 1.2mm
- Duty Rating: Heavy Duty
- Finishes: Galvanised Z600 or Grade 316 Stainless Steel
- Testing: BDRI Report B1813
- Fixing: Face-fix for steel flange connection
- 6mm fixing holes
